Plant Estimation & Design Automation System

PEDAS-Systems is an integrated BIM solution for plant design that facilitates the design of Pipe Racks, Equipment Structures, Foundations, Column Bases, Drainages, etc, and supports batch processing such as calculation, drawing, BM calculation, 3D modeling, etc.

PEDAS-CLOUD

Overview

PEDAS-Cloud is a comprehensive cloud-based plant-integrated design data management system.

Features

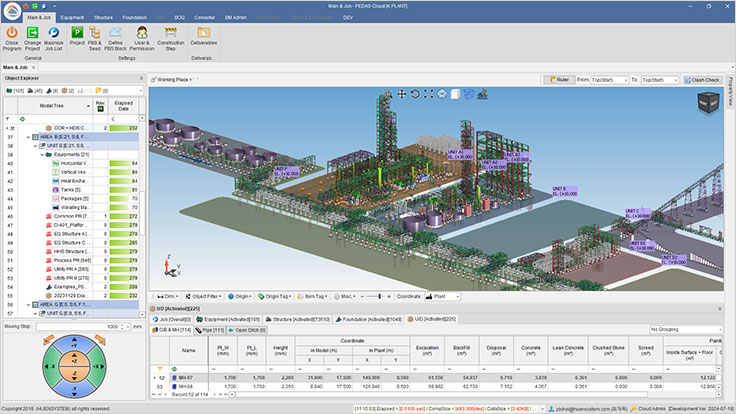

Cloud-Based Integrated Project Design Process
- Stores design deliverables (3D models, calculation sheets, BOM) on the cloud server
- Manages plant objects designed with PEDAS-Foundation, PEDAS-UD, PEDAS-Structure and STAAD, facilitated through database utilization
- Facilitates integrated management of design result files

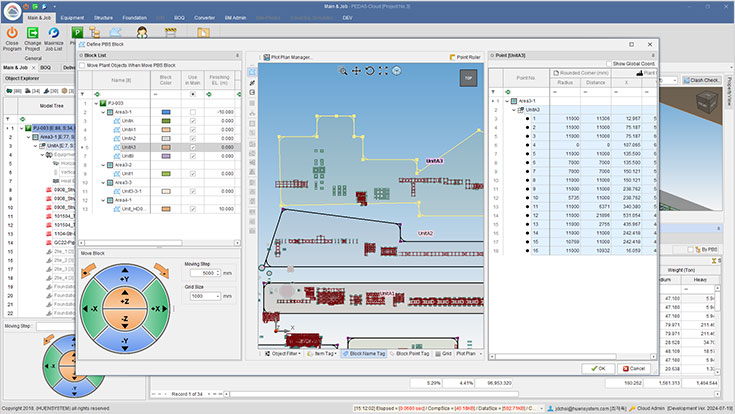

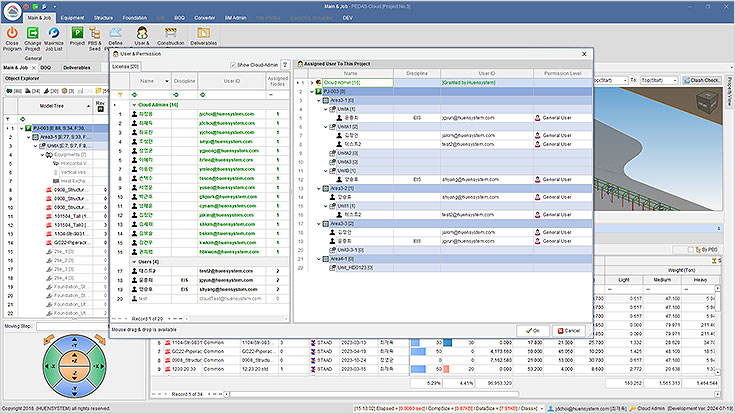

PBS(Project Breakdown Structure) Configuration and User Authentication Settings
- Enables project creation, PBS configuration, user registration, and authentication settings
- Configures authentication based on user permissions

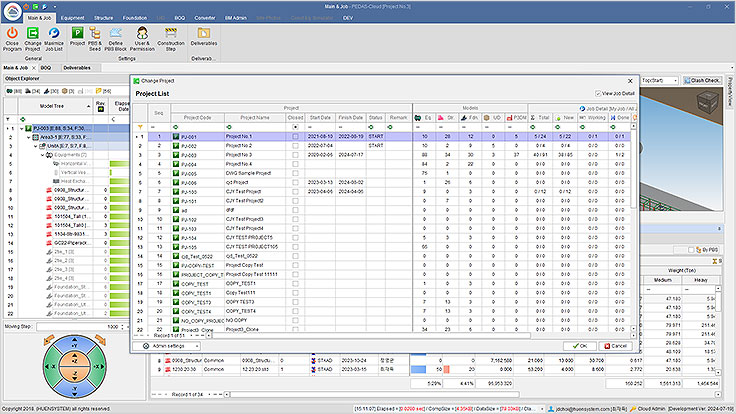

Multi-project Management Function
- Centralizes management of multiple projects by a single manager
- Utilizes accumulated project data as one big data

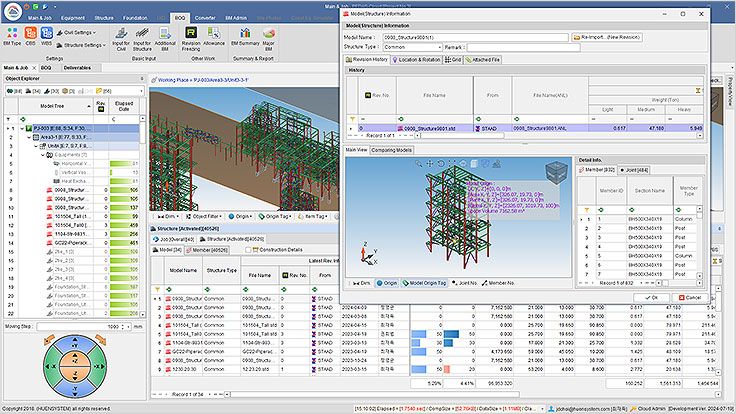

Structure Model Manager
- Structure engineers can upload various steel design files to a specific PBS
  - Structure Analysis Files: STAAD, MIDAS, GT-STRUDL, SACS, SAP, MOSES, etc
  - Structure 3D Model : SDNF Format (S3D and Tekla), PDMS, etc
- Activates complete or selected models for 3D visualization
  - 3D Visualization and BOM aggregation can be done for selected models
- Only the revised file needs to be uploaded when the design is modified
  - File revision management
- Calculation features
  - Steel weight calculation (By Weight Class)
  - Structure total volume calculation
  - Fireproofing quantity calculation (in development)
  - Painting quantity calculation (in development)

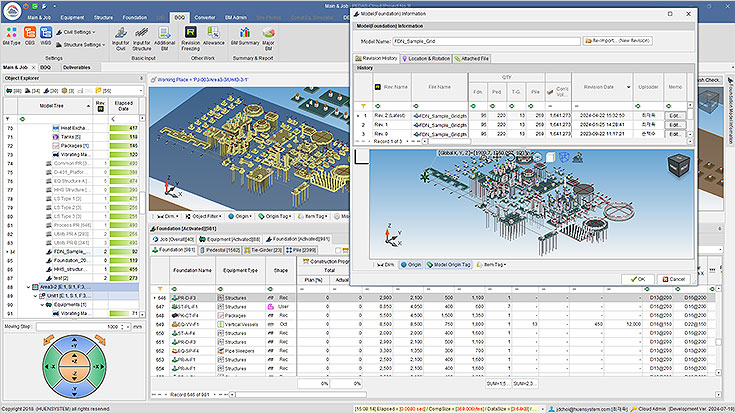

Foundation Model Manager
- PEDAS-Foundation engineers can upload design files to a specific PBS
- Activates either the entire model or selected files into 3D graphics
  - 3D Visualization and BOM aggregation are done only for activated models
- Only the revised file needs to be uploaded when registering a PEDAS-Foundation file
  - File revision, management
- Utility
  - SBOM generation for selected PBS

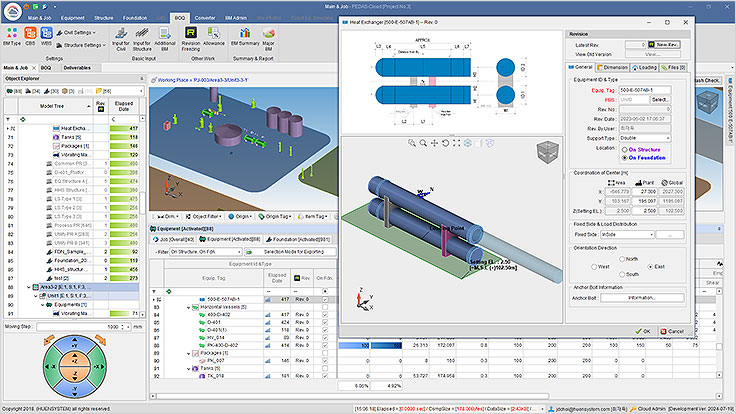

Equipment Data Manager
- Project Management for various equipment
  - Vertical&horizontal vessels, heat exchangers, tanks, pumps, packages, and more
- Links with PEDAS-Foundation for equipment data
- Utility
  - Wind pressure automatic calculation
  - Reference file attachment feature
  - Revision management feature
  - Excel Import/Export feature

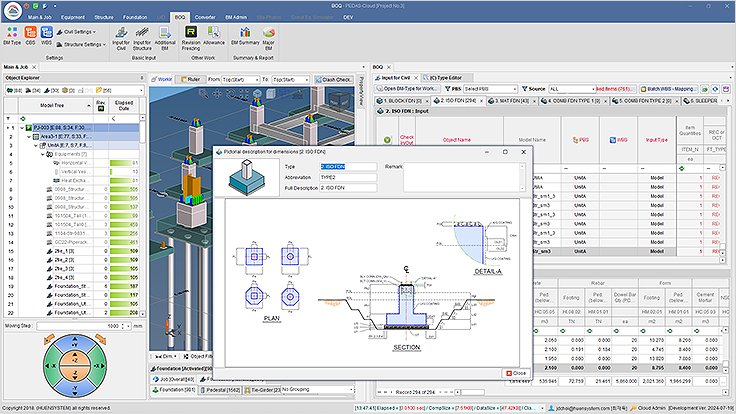

BOQ Manager
- Quantity calculation management system
- Quantity calculation data comparison feature
- Integrates PEDAS design tools with STAAD
- Supports over 30 types of concrete structures

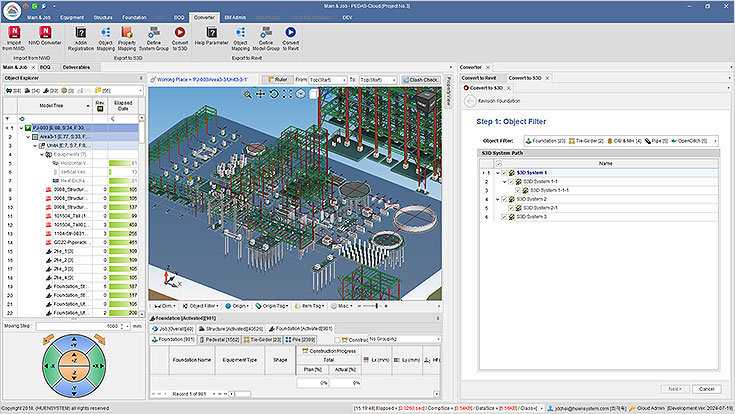

3D Converting Manager
- Conversion of design deliverables from PEDAS models to other 3D solutions such as S3D, PDMS, Revit, and Tekla

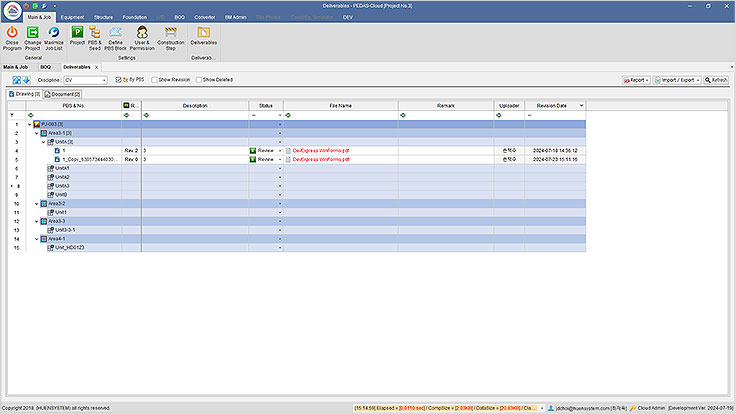

Deliverables Manager
- Manages project deliverables and revisions of deliverables

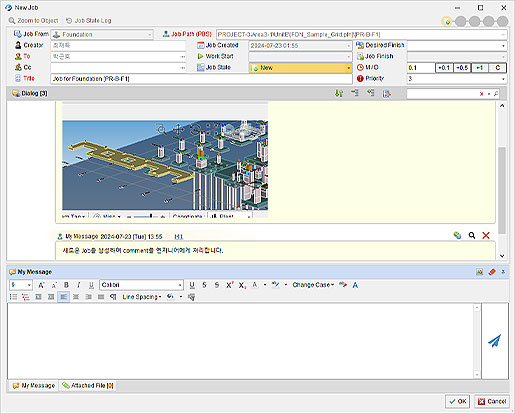

Task Manager
- Manages tasks for all data levels in PEDAS-Cloud
- Provides task lookup feature and navigation feature for zooming into the 3D models

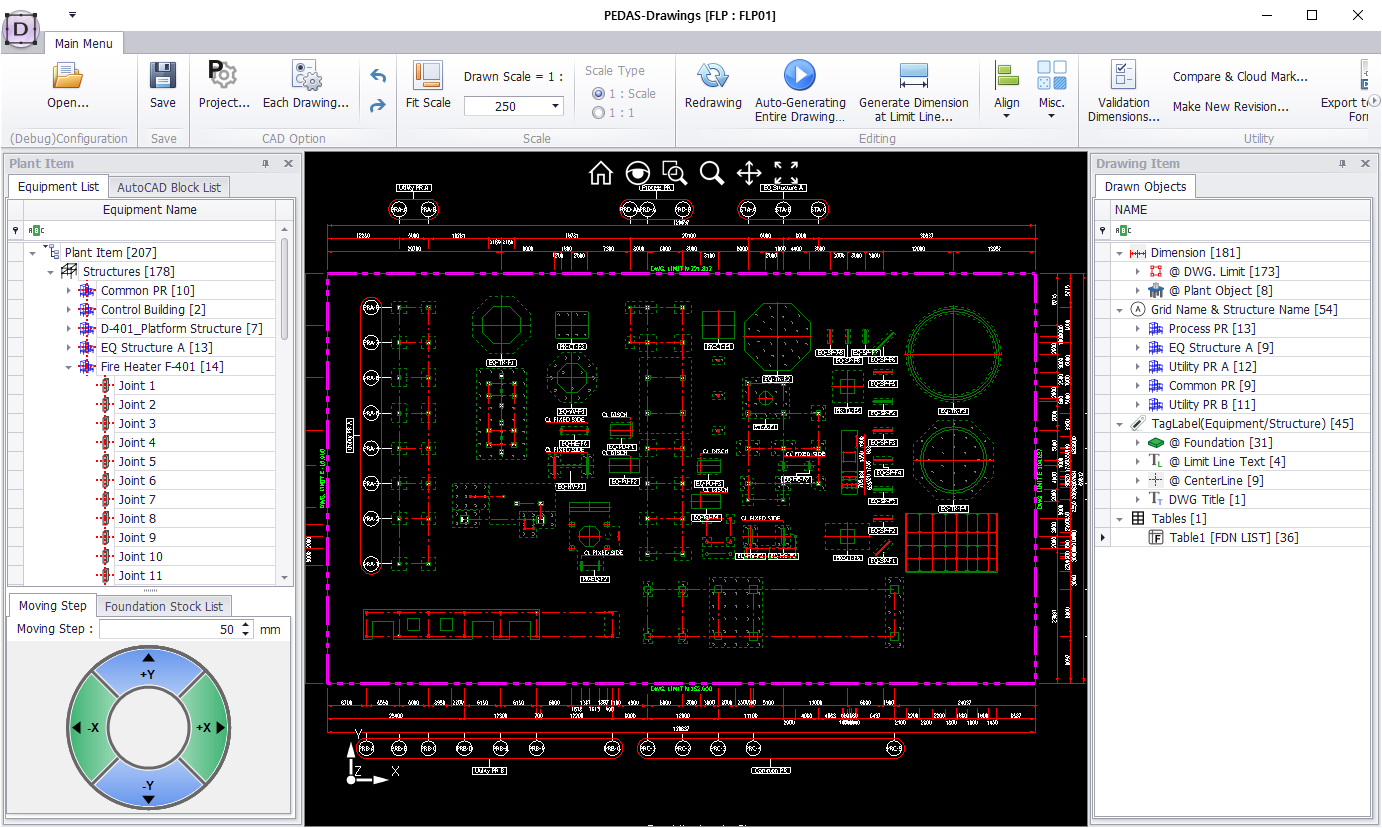

Utility

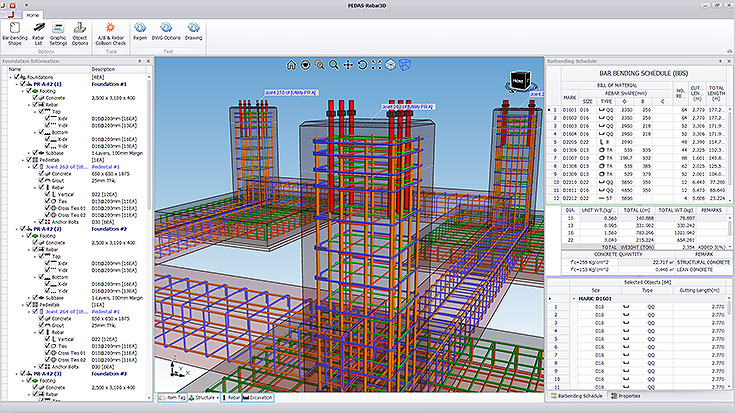

- Enables 3D visualization of rebar design
- Enhances detailing feature for bar-bending schedules (BBS)
- Assists in model placement
