  • Piping isometric drawing from Revit (Ez-ISO) is followed by welding map drawing (Ez-Spool) and construction control (Ez-CC).

  • With Ez-Solution, you can efficiently manage piping fabrication and construction tasks in BIM projects and closely monitor and manage all aspects of the construction process ensuring an in-depth planning and performance control.

  • Ez-Solution is ideal for a wide range of plant projects including semiconductors, secondary batteries, biotechnology, oil and gas, power, and shipbuilding.

  • Ez-ISO, Ez-Spool, and Ez-CC are specialized software solutions used in the plant construction and engineering industry. Ez-ISO is a program that automatically generates isometric drawings from Revit models, essential for high-tech industrial plant projects such as semiconductors and secondary batteries in a Building Information Modeling (BIM) environment. Ez-Spool is compatible with isometric drawings from Revit as well as other 3D CAD software such as Smart 3D, E3D, and PDMS. This could used in a variety of plant projects, including petrochemical, power generation, and shipbuilding. Lastly, Ez-CC is a comprehensive construction management solution that can be used in conjunction with Ez-Spool to link data.

Ez-Spool

Overview

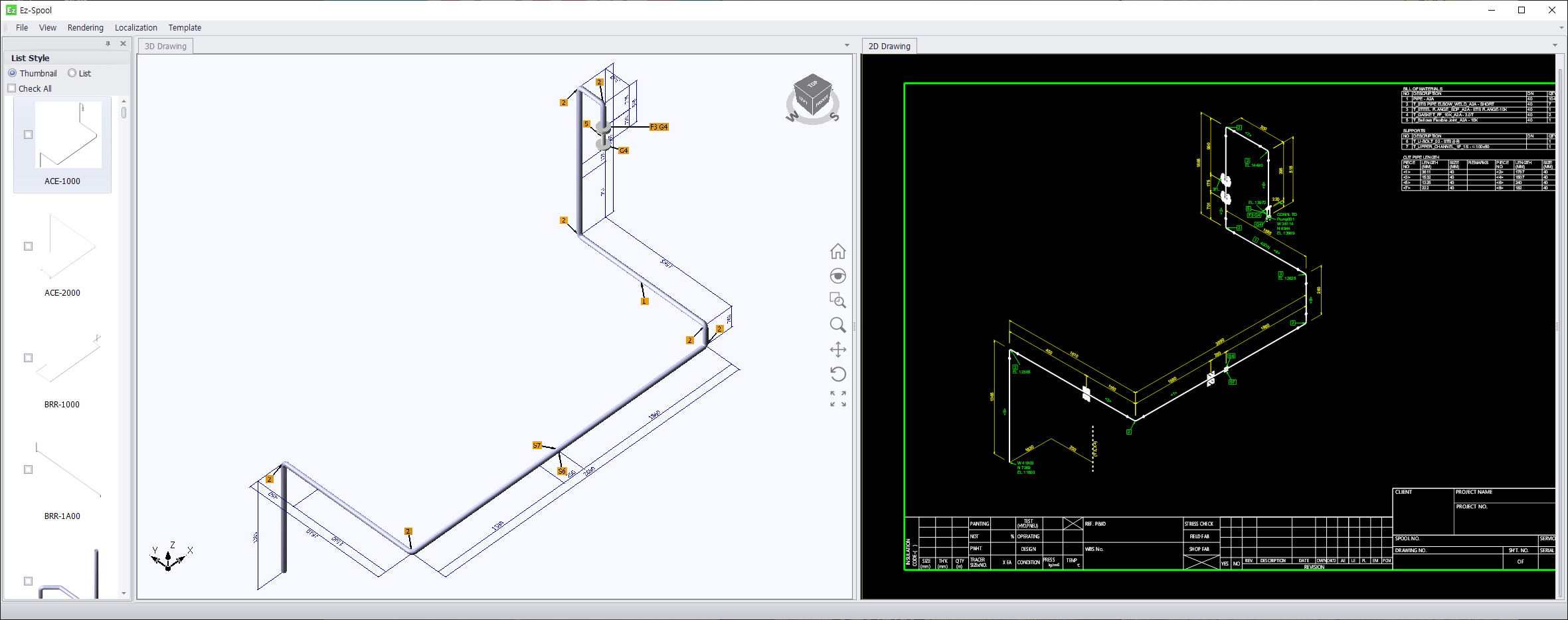

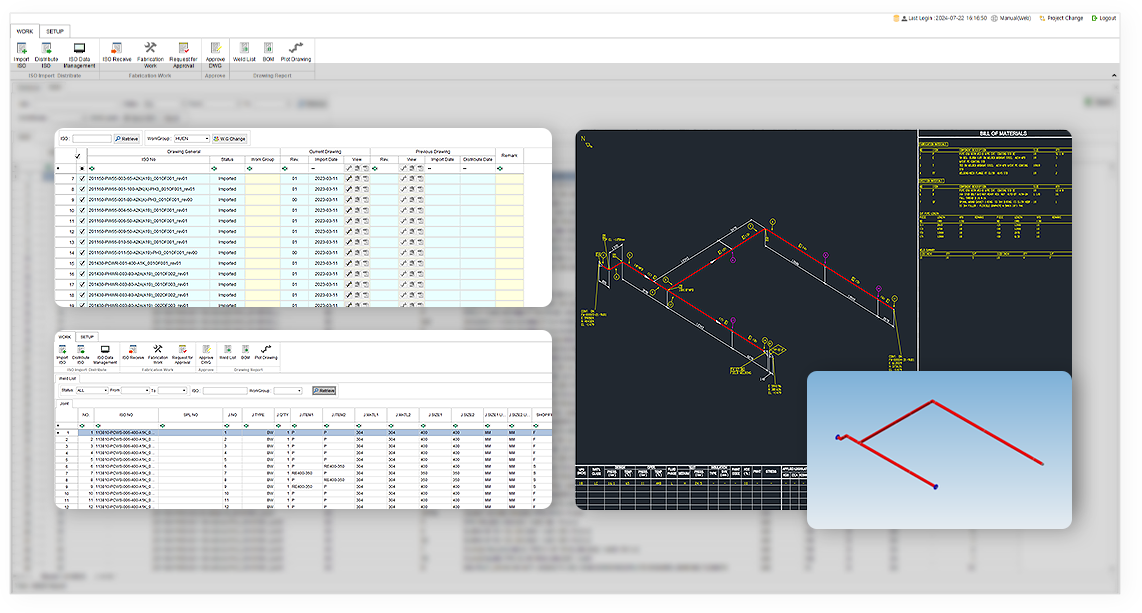

Ez-Spool is a Server-Based Software designed to automate the creation of pipe welding maps for fabrication and erection based on engineering data and isometric drawing

Features

  • Welding Map Generation

    • Automatic generation of precise fabrication and erection drawings and reports ensures quick and accurate results.

  • Allocation of joint and spool numbers

    • Users can easily customize joint and spool numbers to meet specific project requirements.
    • Automatic processing of various joint types (welding, bonding, compression, and flanged connections)

  • Auto Spool Cutting for shop fabrication

    • Ez-Spool cuts spool into units that can be fabricated in the shop, transported, and lifted to the installation site, ensuring efficiency and convenience.

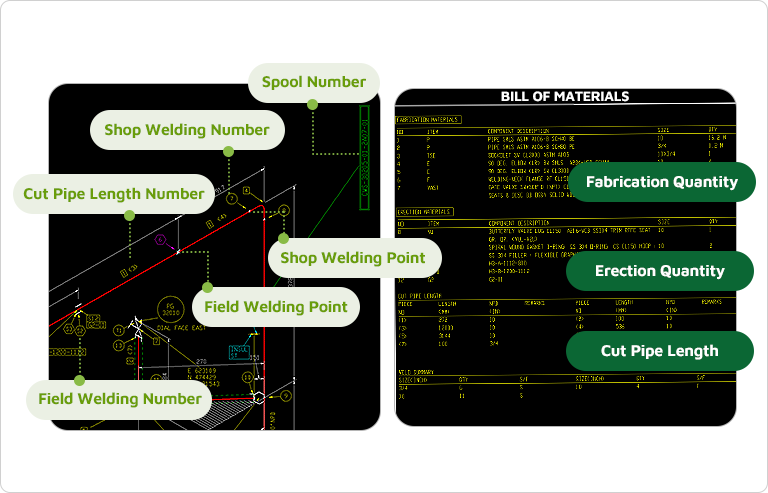

    • The default weld is set as Shop Weld. while the welds of <2 inches and for bolt, support, and thread are set as Field Weld. Field Weld Point will be added if the length of the pipe exceeds the maximum pipe Length value.

  • Revision management

    • You can add revision marks to manage and track the revision.
    • Consider whether to keep or change the weld and part numbers by comparing their coordinates, UCID, and pipe geometry.

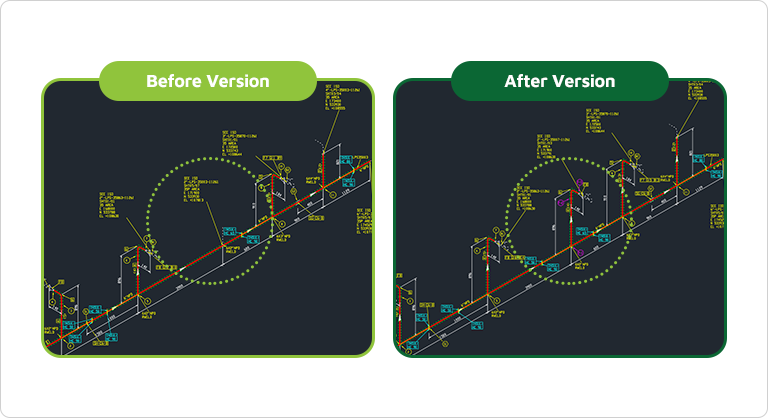

    • Any newly revised items will be colored or highlighted to compare the old revision version with the new revision version.

  • Drawings and Reports output

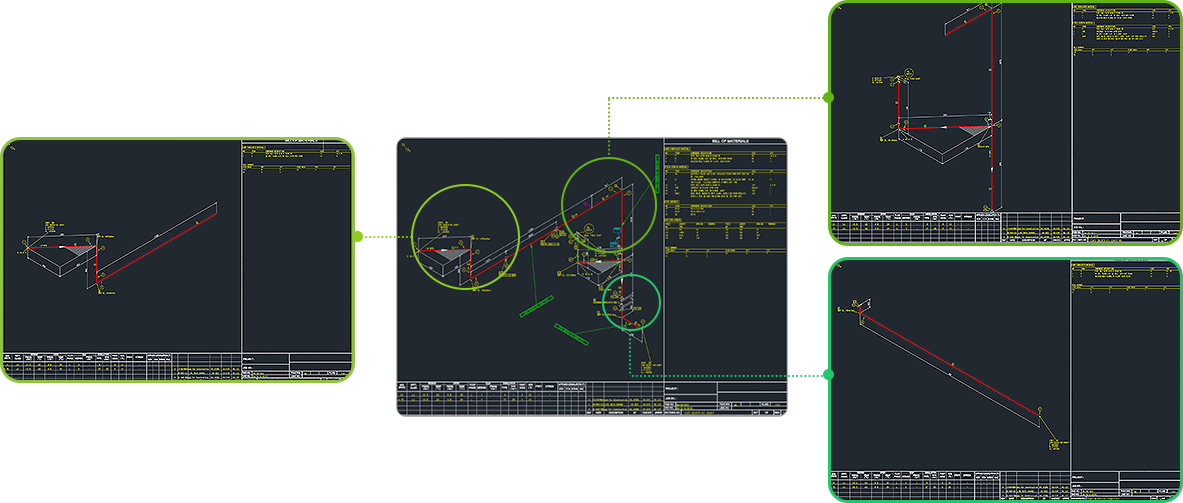

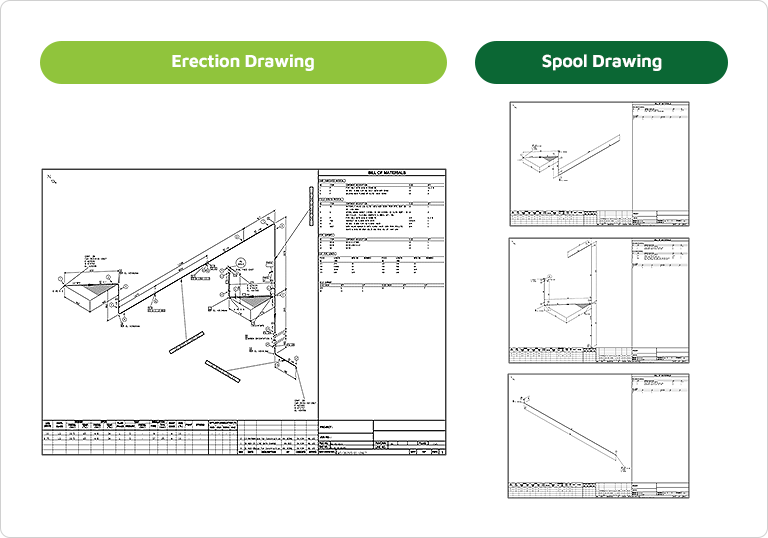

    • Ez-Spool provides a comprehensive range of drawings and reports including fabrication drawings, erection drawings, welding map reports, dia-inch reports, and pipe-cut lists.
Differentiator

  • Smooth Project Management

    • Efficiently manage and execute the piping task for quick project delivery.

  • Flexible Compatibility

    • Integrate with various project platforms, including SP3D, PDS, PDMS, Plant 3D, Revit, and more.

  • Integration with Ez-CC

    • Create synergic usage with Ez-CC, construction control system.

  • High Performance

    • Achieve high productivity with Ez-Spool, where an engineer can perform about 250~300 spool sheets per day (10x faster than competitive products).

  • Collaborative Working Environment

    • Ez-Spool is designed to be handled by multiple users allowing easier management of a project.
    • Workers can enhance the efficiency of the workflow by engaging in the collaboration system of Ez-Spool, surpassing the capabilities of other welding map and spool programs available on the market.
